Types of End Caps Used for Pleated Filter Cartridges in the Market
In the world of filtration technology,
pleated filter cartridges play a vital role in ensuring clean water, pure chemicals, pharmaceutical safety, and reliable industrial processes. While the pleated media itself is central to performance, the
end caps of pleated filter cartridges are just as important. End caps provide structural integrity, secure the pleats in place, and ensure proper sealing inside the filter housing. Choosing the right type of end cap is critical for efficiency, safety, and compliance with application-specific requirements.
As a professional
pleated filter cartridge end cap manufacturer,
Shanghai INDRO FILTERMACHINE has been at the forefront of designing and supplying high-quality
plastic parts of filters, including precision-engineered end caps for various industries. This article explores the
types of end caps used for pleated filter cartridges in the market, their materials, and how they impact filter performance.
1. The Role of End Caps in Pleated Filter Cartridges
Before discussing the types, it is important to understand the functions of an end cap:
- Structural Support: End caps bond the pleated media and inner/outer cages, ensuring stability during operation.
- Sealing Integrity: Correct end caps ensure leak-proof sealing inside housings.
- Compatibility: End caps allow cartridges to fit into specific housings, whether for pharmaceutical, food & beverage, electronics, or water treatment industries.
- Customization: Depending on industry needs, end caps may be flat, finned, open, closed, or fitted with O-rings and gaskets.
Thus, end caps are not just small
plastic parts of filters but critical components that determine the reliability of the filtration process.

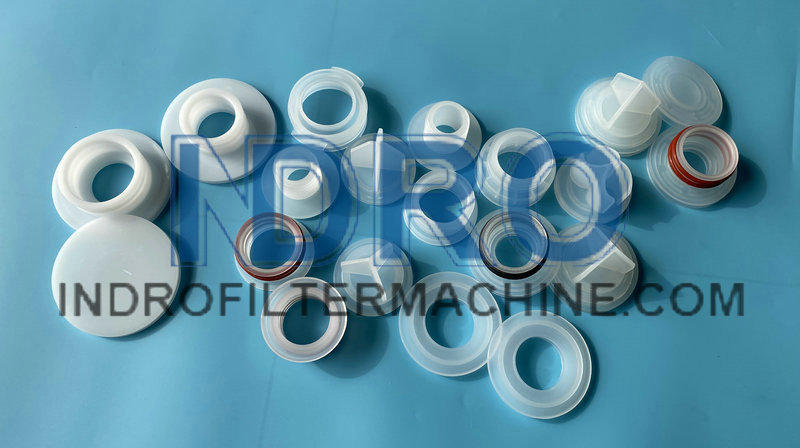

2. Common Types of End Caps in the Market
a) Flat End Caps
Flat end caps are among the simplest and most widely used designs. Both ends of the filter cartridge are closed with flat discs, usually made of
plastic such as polypropylene (PP), PVDF, or PES.
- Applications: General liquid filtration, food & beverage, laboratory use.
- Advantages: Cost-effective, easy to produce, compatible with standard housings.
- Suppliers: Many plastic end cap of filter manufacturers offer flat types due to their broad demand.
b) Fin End Caps
One end of the cartridge has a “fin” design or slotted projection that helps position the filter securely inside the housing.
- Applications: Water treatment, industrial process filtration.
- Advantages: Ensures correct alignment in housings, prevents bypass leakage.
- Manufacturing: Typically produced by pleated filter cartridge end cap manufacturers using injection-molded PP or ABS plastics.
c) DOE (Double Open End) End Caps
In DOE cartridges, both ends are open. These are widely used in liquid and gas filtration systems where sealing is achieved through gaskets or compression.
- Applications: Standard industrial liquid and gas filters.
- Advantages: Simple installation, versatile.
- Example: Many cartridge housings worldwide are built to accept DOE cartridges.
d) SOE (Single Open End) End Caps
SOE end caps come in multiple variations depending on sealing requirements. The closed end ensures secure housing fit, while the open end allows fluid flow.
- 222 O-ring / Flat Cap
- Industry standard for pharmaceutical and biotech filtration.
- Double O-rings provide high integrity sealing.
- 226 O-ring / Flat Cap
- Larger O-ring than 222 for heavy-duty sealing.
- Suitable for high-pressure or critical chemical filtration.
- SOE with Spear / Fin
- Closed with a spear or fin on one end and open (222 or 226 O-ring) on the other.
- Widely used in ultrapure water and electronics industries.
Advantages: Precise sealing, meets strict industry standards, customizable for specific housings.
e) Threaded End Caps
Threaded designs have one end with a male or female thread that screws directly into the housing.
- Applications: Specialized housings, industrial applications.
- Advantages: Secure, prevents cartridge movement under pressure.
f) Customized End Caps
Industries with unique requirements often turn to
custom designs. These may include:
- Reinforced ribs for high-pressure resistance.
- plastic-metal end caps for high-temperature filtration.
- Modified geometries for proprietary housings.
Shanghai INDRO, a trusted
plastic end cap of filter manufacturer, specializes in such custom end caps, ensuring customers get exactly what their process demands.
3. Materials of End Caps
While design is important,
materials also play a vital role:
- Plastic (PP, PES, PVDF, Nylon): Lightweight, chemically resistant, cost-effective. Most common in water, food & beverage, and biopharma.
- Metal (Stainless Steel, Aluminum): Used for high temperature, aggressive chemicals, or specialty applications.
- Composite Materials: Combine plastic flexibility with reinforcement for added durability.
Plastic parts of filters dominate the market due to their versatility and lower cost, making them the first choice for most industries.
4. Choosing the Right End Cap: Case of PES Filter Cartridges
For
PES pleated filter cartridges, which are widely used in pharmaceutical and critical water filtration, sealing and cleanliness are paramount.
- PES cartridges often use SOE 222 or 226 O-ring flat end caps to guarantee leak-proof sealing.
- Flat end caps may be used in non-critical environments, but for high-purity needs, precision end caps from suppliers like Shanghai INDRO are preferred.
- PES material compatibility ensures that end caps bond seamlessly with the filter media during welding, often using infrared or hot plate welding systems.
5. The Role of Shanghai INDRO in End Cap Manufacturing
Shanghai INDRO FILTERMACHINE is not only a supplier of
pleated filter cartridge making machines but also a leading
pleated filter cartridge end cap manufacturer. Their expertise in producing
plastic parts of filters, including precision end caps, makes them a trusted name globally.
Key advantages of choosing
Shanghai INDRO as a plastic end cap of filter manufacturer include:
- Precision Design: End caps designed to fit perfectly with industry-standard housings.
- Material Options: From PP to PVDF, depending on customer requirements.
- Customization: Tailored end caps to suit unique customer housings and filtration applications.
- Integration: Compatibility with advanced welding machines, including infrared welding systems with water cooling, ensuring top-class sealing quality.
6. Market Trends and Future Outlook
As filtration applications expand in pharmaceuticals, biotechnology, food safety, and electronics, the demand for high-quality
plastic end caps of filters continues to grow. The shift toward
customized end caps is clear, as industries demand precision-fit, reliable, and application-specific solutions.
Suppliers like
Shanghai INDRO FILTERMACHINE are well-positioned to lead this trend, offering not only
pleated filter cartridge making machines but also the
plastic end caps that complete the cartridge. Their continuous innovation in welding systems and end cap designs ensures they remain a trusted partner in global filtration markets.
Conclusion
The
types of end caps used for pleated filter cartridges—flat, fin, DOE, SOE (222, 226, spear/fin), threaded, and custom—each serve distinct purposes. Their material choice, structural design, and sealing method significantly impact the performance and reliability of filtration systems.
As a leading
pleated filter cartridge end cap manufacturer,
Shanghai INDRO provides high-quality, precisely designed
plastic parts of filters that meet the diverse needs of industries worldwide. By focusing on innovation, including advanced welding technologies and water-cooled infrared welding systems, INDRO has proven to be the best partner for customers seeking top-class filtration solutions.
When choosing a
plastic end cap of filter manufacturer, reliability, precision, and innovation matter—and Shanghai INDRO stands out as the trusted name for global customers.
