Development of Pleated Filter Cartridges Assembly Technology
The global demand for high-efficiency filtration has led to rapid innovation in the design and manufacturing of pleated filter cartridges. These cartridges are essential components in water purification, food and beverage production, pharmaceuticals, microelectronics, and industrial applications. As performance standards grow stricter and market demand increases, manufacturers must adopt advanced technologies to ensure quality, consistency, and high throughput. One of the most significant advancements in recent years has been the evolution of pleated filter cartridges assembly technology, particularly the rise of fully automated systems powered by advanced welding and control mechanisms.
This article explores the transformation of pleated filter cartridge assembly—from early manual methods to today’s sophisticated machinery—and highlights the contributions of leading companies like INDRO FILTER MACHINE, a well-known pleated filter cartridge machines manufacturer and supplier of innovative infrared welding systems.
From Manual Assembly to Automation
In the early stages of filter cartridge production, assembly was carried out manually. Skilled technicians pleated the filtration media by hand, cut the material to size, inserted inner and outer supports (typically made of plastic or stainless steel), and bonded the components using adhesives or rudimentary heat-welding tools.
This manual process had several drawbacks:
Inconsistent quality due to human error
Low productivity, with limited output per day
Higher defect rates, such as weak welds or media misalignment
Safety hazards, as open heating elements or chemical adhesives were commonly used
As filtration systems became more advanced, the need for tighter tolerances, cleaner manufacturing, and higher repeatability forced the industry to embrace automation.
Rise of Pleated Filter Cartridge Assembly Machines
The shift toward mechanized production was a turning point for the industry. Pleated filter cartridges assembly machines introduced automation to nearly every step of the process:
Automatic pleating machines form and secure the media with precise, repeatable spacing.
Hot-melt seaming systems join pleats to form a cylinder or leaf structure.
Core insertion machines accurately place the inner supports.
End cap welding machines bond the media to plastic or metal end caps using controlled heat.
Final testing stations ensure product integrity and leak-proof sealing.
With automation, manufacturers gained the ability to produce large volumes of consistent, reliable filter cartridges. These machines are capable of handling a wide range of configurations—from small capsule filters to long industrial cartridges—with minimal changeover time. Most importantly, they have drastically improved process control, which is critical in applications that require absolute filtration.
Key Technologies Behind Modern Assembly Machines
Advanced pleated filter cartridge assembly machines incorporate several key technologies: 1. Servo-Driven Control Systems
Servo motors ensure high-precision motion control, enabling the machines to handle delicate media without damage. Adjustable parameters allow manufacturers to switch between cartridge types with little downtime. 2. PLC Automation
Programmable Logic Controllers (PLC) manage all machine operations, from pleating speed to welding temperature. This allows operators to maintain consistent settings for every production batch, reducing variability. 3. Clean Welding Techniques
Welding is a vital part of filter cartridge assembly. Traditional hot-plate welding and ultrasonic bonding have limitations when it comes to producing uniform, particle-free welds. That’s where infrared (IR) welding technology has changed the game.

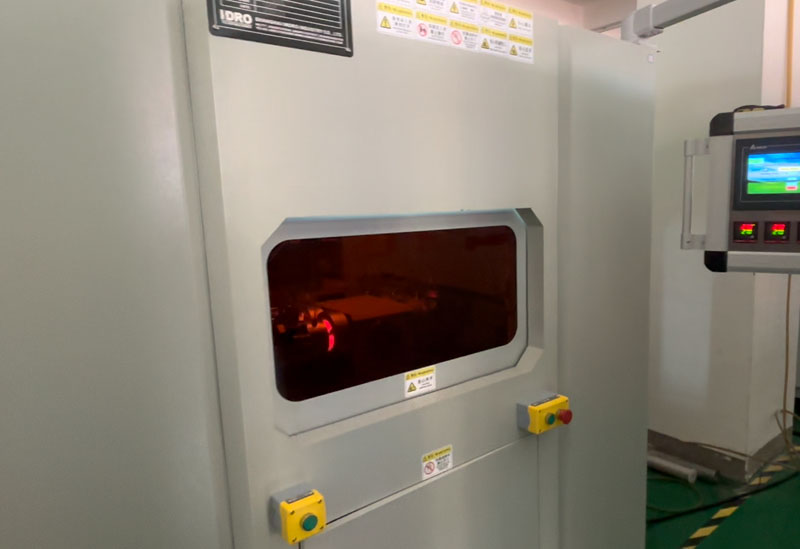

Innovation in Infrared Welding: INDRO's Breakthrough
One of the most significant recent developments in the assembly process is the adoption of IR welding systems—especially those offered by INDRO FILTER MACHINE. As a dedicated pleated filter cartridge machines manufacturer, INDRO has developed a specialized INDRO pleated filter cartridges IR welder that is now widely recognized as a best-in-class solution. What Makes IR Welding Superior?

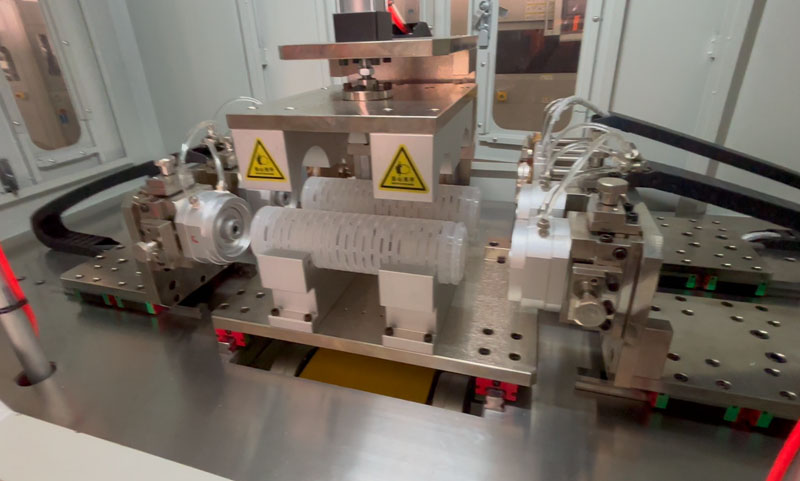

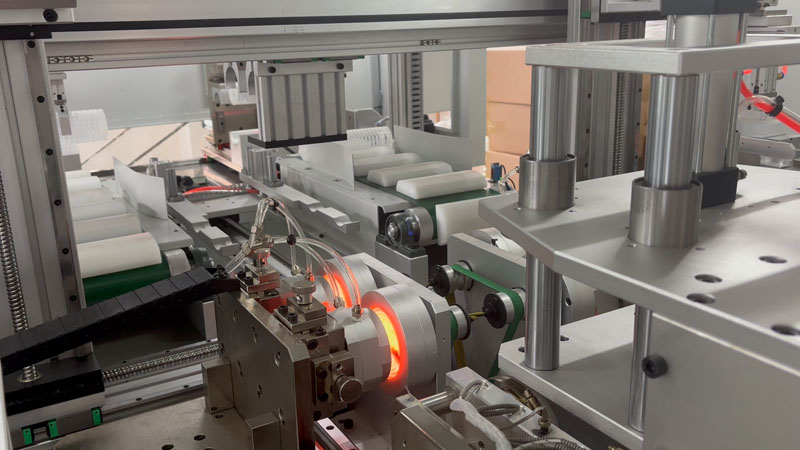

Infrared welding uses radiation to heat the plastic components (such as end caps and housings) without physical contact. Once the material reaches a defined melting point, the components are pressed together under controlled force, resulting in a strong, clean bond. Advantages of INDRO's IR welding system include:
No particulate generation, which is critical in cleanroom environments
Consistent weld strength across batches
Faster cycle times compared to hot-plate welding
No burn marks or deformation of plastic parts
Water-cooling system for precise thermal control
This technology ensures that pleated filter cartridges meet rigorous quality standards required in sectors like pharmaceuticals and ultrapure water processing.

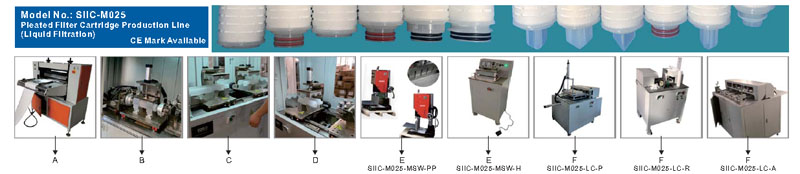

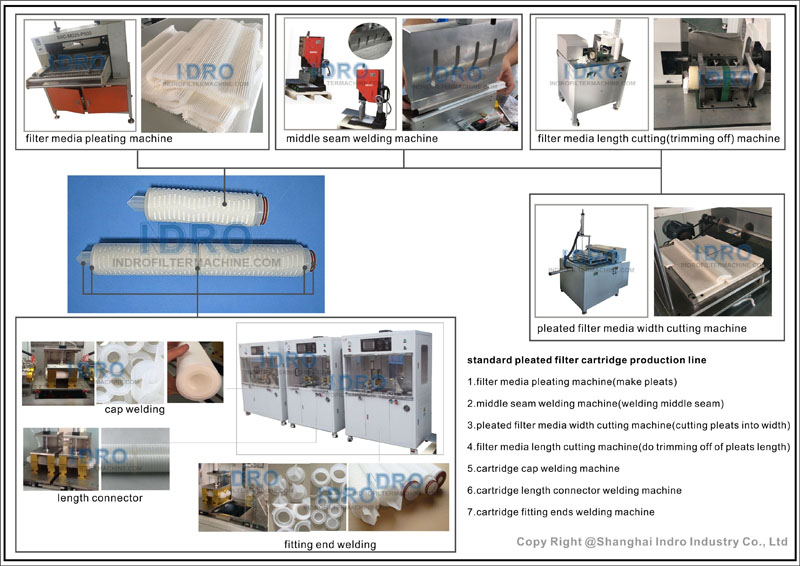

Integrated Assembly Lines: End-to-End Automation
To further streamline production, leading pleated filter cartridge machines suppliers like INDRO now offer integrated assembly lines that include:
Media pleating and cutting
Tube forming and seaming
Cage/core installation
End cap welding (using IR)
O-ring and gasket placement
Labeling and final inspection
With these systems, manufacturers can reduce labor costs, improve cleanliness, and eliminate error-prone manual steps. Such all-in-one lines are ideal for high-volume filter cartridge factories targeting global distribution.
INDRO FILTER MACHINE: Driving the Industry Forward
As a professional pleated filter cartridge assembly machines supplier, INDRO FILTER MACHINE has earned a reputation for reliable, innovative, and high-performance manufacturing solutions. Their equipment is widely used across Asia, Europe, and North America, with customers ranging from small filter startups to global filtration leaders.
What sets INDRO apart is their:
Customization capability for different cartridge specifications
Robust after-sales support, including on-site training
Global sourcing for key machine components
Strong R&D team that keeps machines updated with the latest technology
INDRO’s machines are known for their long service life, low maintenance, and high operational uptime—critical factors in today’s competitive manufacturing environment.
Benefits of Modern Assembly Technology
The transformation of pleated filter cartridge assembly technology brings tangible benefits: For Manufacturers:
Higher productivity: Fully automated lines can produce thousands of cartridges per shift.
Consistency: Uniform welding and pleating ensure fewer defects and better product reliability.
Faster time-to-market: Modular machines reduce setup time and allow rapid scaling.
For End Users:
Superior product quality: Stronger welds and better sealing enhance filter performance.
Extended service life: Cartridges made with IR welding last longer under pressure.
Improved safety: Particle-free filters are safer for sensitive environments like biopharma and microelectronics.
The Future of Filter Cartridge Assembly
The future of pleated filter cartridge assembly will likely include:
Smart manufacturing systems with AI-based quality control
IoT-enabled machines for predictive maintenance
Sustainable design, including recyclable materials and energy-efficient operations
Remote diagnostics and automation analytics for global manufacturing networks
Innovators like INDRO FILTER MACHINE are expected to lead this evolution by integrating more data-driven technologies and robotics into their pleated filter cartridge assembly solutions.
Conclusion
The development of pleated filter cartridges assembly technology marks a significant leap forward in the filtration industry. What once required manual labor and basic tools is now performed by highly automated machines capable of precise, consistent, and clean manufacturing. Through cutting-edge solutions like the INDRO pleated filter cartridges IR welder, manufacturers are achieving unprecedented levels of quality and efficiency.
As a trusted pleated filter cartridge machines manufacturer and pleated filter cartridge assembly machines supplier, INDRO FILTER MACHINE continues to shape the future of filtration by delivering advanced machinery that empowers global manufacturers to meet the rising demands of high-performance applications. With IR welding technology and end-to-end assembly integration, the industry is poised for even greater growth, productivity, and innovation.
