5 points you must know when you decide to weld and produce single 40inch pleated filter cartridge
Views : 2454
Author : indrofiltermachine.com
Update time : 2023-02-09 20:24:52
5 points you must know when you decide to weld and produce single 40inch pleated filter cartridge Customers often ask us, "We want to produce single 40inch pleated cartridge filter. Please help recommend the equipment" In order to provide the most suitable equipment for customers, we will also ask some detailed questions. Then we ask one question, customer send an answer, thus will often take 1-2 weeks or more days to get all necessary information.

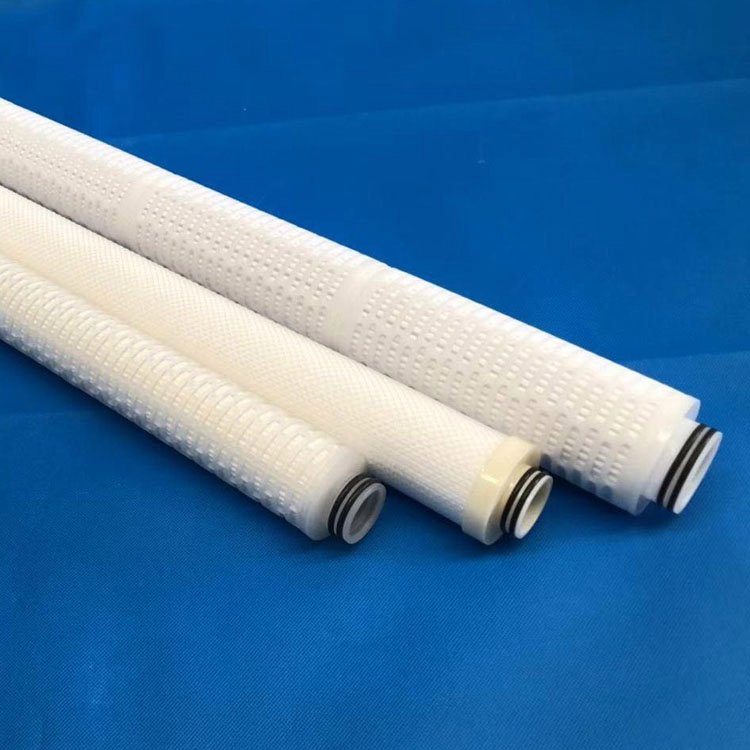

Therefore, we have made the following summary in particular, so that filter element manufacturers can quickly obtain key information and put into production as soon as possible. There are totally 5 points you must consider as following: 1st. The style of single 40inch pleated cartridge filter There are two common types of single 40inch filter in the market at present, the first type is composed of outer cage, inner core, pleats and adaptors. The second type is composed of pleats, out-wrapper(net) and adaptors. 2nd. Material of single 40inch pleated cartridge filter You must know the material of each part of the filter cartridge. For example, the first type of filter mentioned above, the inner core and outer cage are often made of PP, the pleats filter media is usually PP, and the adaptors is usually PP. For example, the second type of filter mentioned above, its pleats are made of PP usually and other filter media some times. The outer wrapper (net) is usually made of PP, and the adaptors are made of PP or ABS. 3rd. Diameter of filter element The common outer diameter of the above two filter elements is 63mm. The exact diameter from different supplier would be different. 4th. Type and shape of the adaptors For example, the first type of filter mentioned above, its common adaptors include: 222 with skirt, fin with skirt and flat cap with skirt. For example, the second filter element mentioned above, its common adaptors include: 222 with skirt, flat cap with skirt. 5th. Selection of filter cartridge plastic parts When you decide to produce a depth filtration or micron filtration pleated filter cartridge, you should not only consider the production equipment, but also give priority to the stability of the supply of filter plastic parts, because most filter manufacturers purchase plastic parts from outside. When you decide to produce pleated cartridge filter, which filter element plastic parts to use must be considered first. If your factory is large and has the ability to inject various filter element parts, you can design and produce your own parts at any time, this point can be ignored. In the production process of filter element, welding process is the core step. The 5 points mentioned above directly determine which welding equipment to use. When you purchase equipment, when the information of above 5 points is clear, it will help us to recommend the most suitable equipment for you and help you put it into production as soon as possible.
