What is the Pleated Filter Cartridge Basic End Cap Welder?
Views : 97
Author : indrofiltermachine.com
Update time : 2025-09-04 13:41:02
Pleated filter cartridges are essential components in many industries, including pharmaceuticals, water treatment, food and beverage, petrochemicals, and electronics. Their efficiency comes from the pleated design, which maximizes surface area and enhances filtration performance. However, the reliability of a pleated filter cartridge does not rely solely on the pleated media—it also depends on how the cartridge is assembled and sealed. One of the most critical processes in the manufacturing of pleated filter cartridges is the welding of end caps.
This is where the pleated filter cartridge basic end cap welder comes into play. This specialized equipment is designed to attach plastic end caps securely to the pleated filter media and core, ensuring leak-free performance and structural integrity. Without this machine, the filter could fail under pressure, contaminate the process fluid, or lose durability.
In this article, we will explore what the basic end cap welder is, how it works, its design and operation principles, its importance in filter production, and the benefits it provides to filter manufacturers. What is a Pleated Filter Cartridge Basic End Cap Welder?
A pleated filter cartridge basic end cap welder is a piece of specialized manufacturing equipment used to bond or weld the plastic end caps of a pleated filter cartridge to the pleated media and inner core. The end caps are critical because they seal the ends of the pleated structure, holding the filter together and preventing fluid bypass.

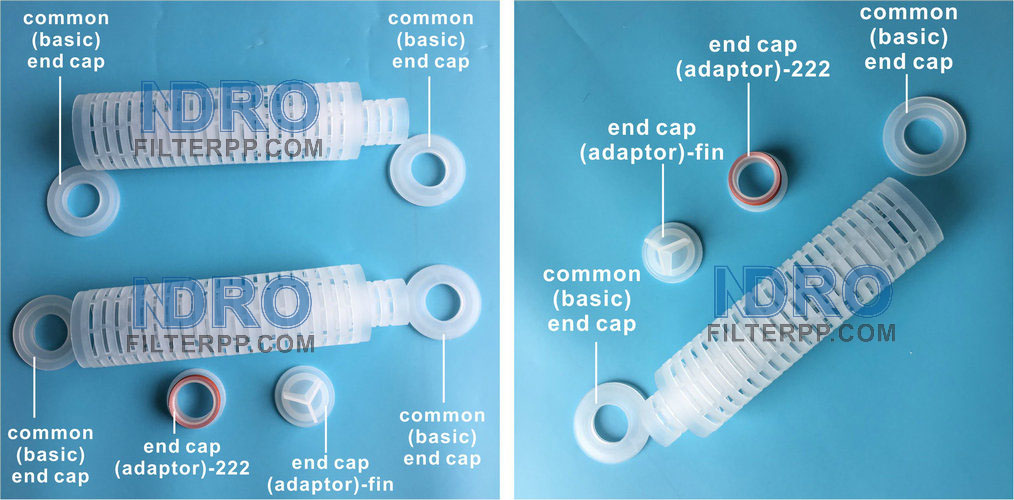

The word “basic” in this context often refers to the most fundamental model of end cap welding equipment—typically designed for standard filter cartridges with common sizes (such as 10, 20, 30, and 40 inches in length). It focuses on performing the essential task of end cap welding efficiently and reliably, without some of the advanced automation or modular capabilities of more complex welding systems.
This machine is usually designed to work with filter materials such as polypropylene (PP), polyester (PET), PES, PVDF, fiberglass, Nylon, PTFE or other weldable polymers commonly used in filter production. By applying heat and pressure in a controlled manner, it melts the contact surfaces and bonds the end cap to the cartridge permanently. How Does the Basic End Cap Welder Work?
The pleated filter cartridge basic end cap welder follows a structured working principle: Loading the Cartridge Assembly

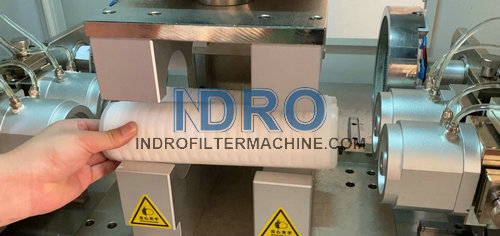

The operator places the half-finished filters (with pleats packs which are inserted into outer cage and inner core) and the required plastic end cap into the welding station. Some machines have fixtures or molds that ensure proper alignment of components. Heating Process

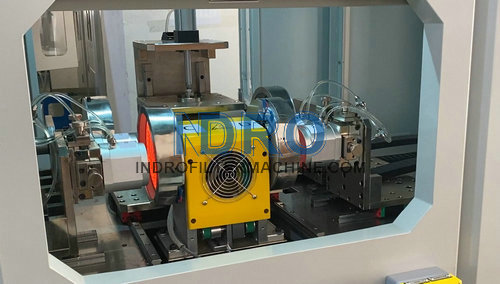

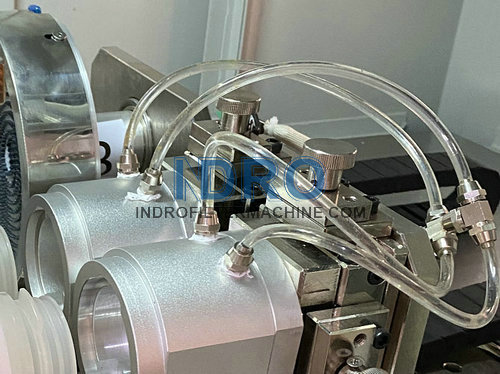

The welding system uses a heating source—commonly infrared heating or conduction heating—to melt the interface between the filter end cap and the pleated filter media. Infrared systems are especially preferred in modern machines because they provide non-contact, uniform heating. Pressing and Bonding

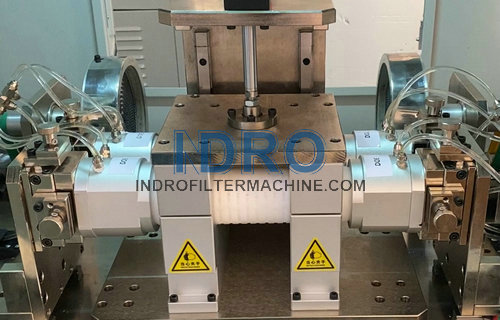

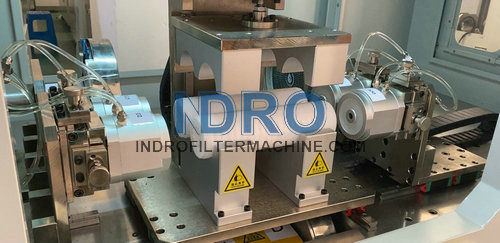

Once the material reaches the required temperature, the machine applies pressure to press the end cap onto the pleated structure and core. The melted thermoplastic solidifies as it cools, creating a strong and permanent bond. Cooling Phase
To maintain the cartridge’s dimensional stability, some welders are equipped with cooling systems. This ensures the molten plastic solidifies quickly without deformation. Unloading

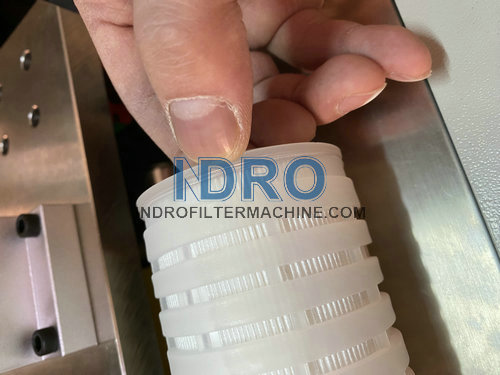

After welding and cooling, the finished filter cartridge with its securely welded end cap is removed from the machine, ready for further processing (such as adapter welding, testing, or packaging).
Key Features of a Basic End Cap Welder
Although different manufacturers design their equipment with variations, most basic end cap welders include the following features: Precision Heating System – Ensures consistent welding without overheating or underheating. Adjustable Fixtures – Allows the machine to accommodate various cartridge lengths and diameters. User-Friendly Controls – Simplified interfaces for temperature, pressure, and timing adjustments. Durable Construction – Built to handle high production cycles with minimal downtime. Safety Mechanisms – Includes shields, emergency stops, and sensors to protect operators.Some more advanced models may also feature digital temperature controllers, programmable logic controls (PLC), and automated loading/unloading systems. However, a basic end cap welder focuses primarily on providing reliable welds without excessive complexity.
Importance of End Cap Welding in Filter Cartridge Manufacturing
The role of the basic end cap welder is vital for several reasons: Leak Prevention
A poorly welded end cap can allow unfiltered liquid to bypass the pleated media, reducing the filter’s efficiency and contaminating the system. Structural Integrity
End caps hold the pleated media in place, preventing collapse or displacement under pressure. Strong welds ensure the filter maintains its shape and function. Compatibility
Different industries require filters that can withstand chemicals, pressure, or high flow rates. Proper welding ensures the filter meets these application demands. Production Consistency
Manual bonding methods cannot guarantee uniform results. A dedicated welder ensures repeatable quality across thousands of cartridges. Cost Efficiency
By reducing waste from defective filters, the welder contributes to lower production costs and higher profitability.
Benefits of Using a Basic End Cap Welder
Investing in a pleated filter cartridge basic end cap welder provides manufacturers with several advantages: Reliable Quality – Produces consistent welds that meet industry standards. Improved Efficiency – Reduces the time required to weld end caps compared to manual methods. Lower Rejection Rates – Minimizes defective filters caused by improper bonding. Flexibility – Can adapt to different cartridge lengths and diameters with adjustable fixtures. Operator Friendly – Basic models are often easier to learn and operate than fully automated machines. Durability – Built to last with minimal maintenance, making them a cost-effective investment.
Applications of the Basic End Cap Welder
The pleated filter cartridge basic end cap welder is widely used in industries that require high-performance filtration. Typical applications include: Pharmaceutical Industry – For sterile filtration of liquids and gases. Food and Beverage Processing – Ensuring purity in water, beer, wine, juices, and dairy products. Electronics Manufacturing – Removing particulates from ultrapure water and process chemicals. Petrochemicals and Oil & Gas – Filtering hydraulic fluids, fuels, and lubricants. Water Treatment – Producing cartridges for industrial and municipal water purification.
Evolution of End Cap Welding Technology
In the early days of filter cartridge manufacturing, bonding was sometimes done using adhesives. While effective in some cases, adhesives posed risks of chemical leaching, weaker seals, and higher production costs.
The development of end cap welding machines eliminated these issues by using heat and pressure instead of adhesives. Over time, technology has continued to advance:
From simple conduction heating to infrared heating systems.
From manually operated fixtures to semi-automatic and fully automatic machines.
From single-size molds to multi-size adjustable systems.The basic end cap welder remains the foundation of this technology. While advanced models provide higher automation and speed, the basic version is often the entry-level machine that helps manufacturers produce reliable filters with less complexity and investment.
Choosing the Right Basic End Cap Welder
When selecting a pleated filter cartridge basic end cap welder, manufacturers should consider: Filter Specifications – Cartridge sizes, materials, and production volume. Heating Method – Infrared systems are often superior for precision and cleanliness. Ease of Use – Simple controls and quick setup save time and reduce operator errors. Maintenance Needs – Machines with durable designs and easy-to-replace parts minimize downtime. Supplier Reliability – Choosing a trusted manufacturer ensures quality equipment and after-sales support.
Conclusion
The pleated filter cartridge basic end cap welder plays a vital role in the manufacturing of high-quality filters. It ensures strong, reliable, and consistent bonding of end caps to pleated filter media, which is essential for the performance and durability of the filter cartridge.
Although it may be considered the fundamental model compared to advanced automated systems, the basic end cap welder remains indispensable for many filter manufacturers. It offers the perfect balance between cost-effectiveness, reliability, and ease of operation. By using this equipment, companies can produce filters that meet the demanding standards of industries such as pharmaceuticals, food and beverage, water treatment, electronics, and petrochemicals.
In short, the basic end cap welder is not just a machine—it is the backbone of filter cartridge production, ensuring every pleated filter performs as expected in critical applications worldwide.
