SIIC-M034 dust collector filter cartridge production line
Model No.: SIIC-M034

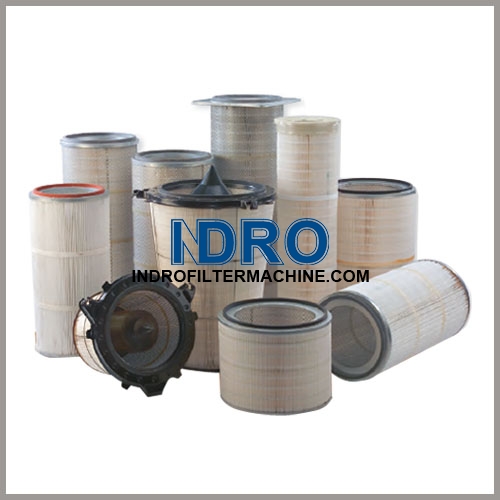

SIIC-M034 dust filter cartridge production line, making machine is special for making dust collector filter cartridges, such as spun bond polyester cartridge, cellulose filter cartridge, gas turbine air intake filter cartridges, long pleated bags type filter cartridges, PU top-bottom pleated cartridge widely used in industrial dust removal.
Main parts:
-automatic feeding part
-filter media pre-cutting part
-corrugating part
-pre-heating and setting machine

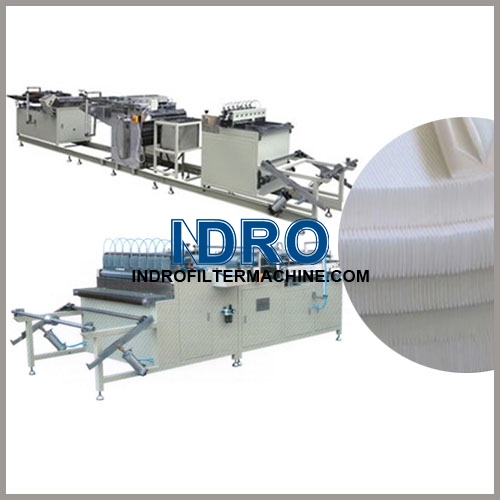

-filter media rotary pleating or blade pleating part
-conveying part
-Pleats middle seam welding part

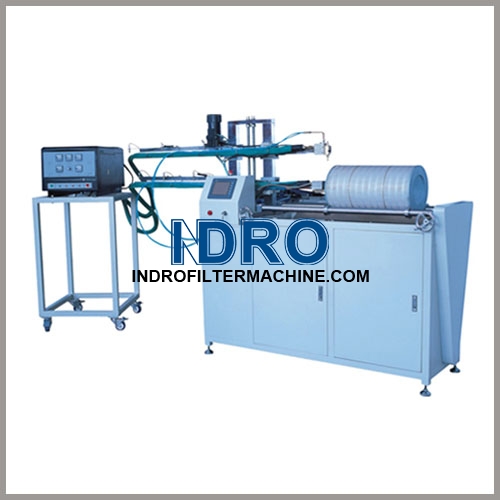

-cartridge body string wound gluing part

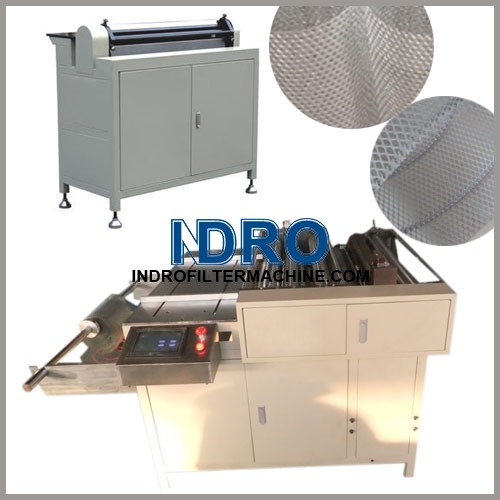

-inner supporting wire mesh-steel core and outer wire mesh cover making part
-end caps or top-bottom covers gluing part
-Sealing gasket gluing part
Specification Data:
-Pleating speed: 0- 30m per minute
-Max pleating width: 600mm or other as per your requirement
-Pleat depth: 12-50mm other pleat depth up to 300mm can be custom made
-cartridge body string wound gluing capacity: 3-5pcs per min
-filter cartridge length: ≤950mm, other length can be custom made
-filter cartridge diameter: >100mm
-Power: 380V/50HZ, other can be custom made
-Available for diamond wire mesh and perforated steel sheet
-Diamond wire mesh or perforated steel tube available diameter: 90-500mm
-Diamond wire mesh or perforated steel tube available length: >160mm
-Diamond wire mesh thickness: 0.4-0.8mm
-Perforated steel plate thickness: 0.3-0.5mm
-Dust collector filter cartridge end caps-top-bottom covers gluing max diameter: 350mm
-Dust collector filter cartridge end caps-top-bottom covers gluing speed: 2-10m per min
Features:
-Machines-equipments line special for making dust collector filter cartridges
-Automatic pleating and counter
-Uniform pleat depth
-Adopting frequency conversion speed regulation and cutting without stopping to make the cut of diamond wire mesh or perforated steel tube smooth and accurate; fixed die is used to make the process of tube-making precise and uniform, stable and rapid; easy operation.
-Gluing rotary table speed and gluing quantity is adjustable according to diameter of caps-top-bottom covers. Gluing is uniform and accurate.
-Caps gluing is controlled by PLC, easy operation.
-Sealing gasket gluing controlled by PLC to make gluing uniform and accurate, easy operation.
Dust collector filter cartridge making process:
/Pleats making and seam welding-inner and outer wire mesh making rolling and welding-half finish

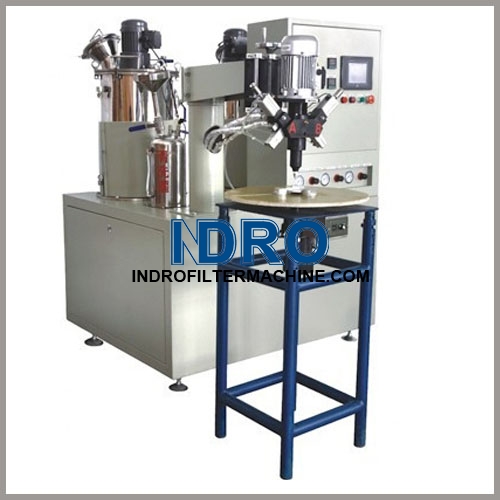

/Dust filter cartridge with plastic PU top-bottom cover-end caps: half finish-PU cap gluing (pouring two-component material) to stick cover onto the cartridge body-finish
/Dust filter cartridge with metal end caps-top-bottom covers: half finish-metal cap gluing-sealing gasket gluing-finish
