High flow filter pleated cartridge pleats maker
High flow filter pleated cartridge pleats maker High flow filter pleated cartridge pleats maker

High flow filter pleated cartridge pleats maker

Item No.: SIIC-M028-P1100

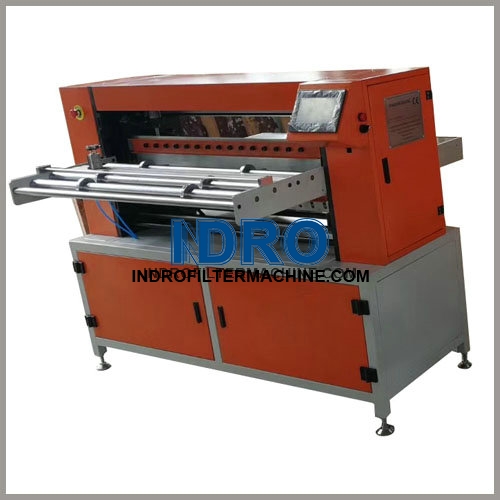

INDRO SIIC-M028-P1100 high flow pleated filter cartridge pleats maker is special used for making pleats high flow pleated filter cartridges, big diameter-fat pleated filter cartridges, such as 3M, Parker, Pall high flow filter cartridge.
INQUIRY
Description Specification Filter Making Process Video
High flow filter pleated cartridge pleats maker
Model No.: SIIC-M028-P1100

INDRO SIIC-M028-P1100 high flow pleated filter cartridge pleats maker is special used for making pleats high flow pleated filter cartridges, big diameter-fat pleated filter cartridges, such as 3M, Parker, Pall high flow filter cartridge.

Applications:

Special used for making pleats high flow pleated filter cartridges, big diameter-fat pleated filter cartridges. Special for high flow pleated filter cartridges, big diameter-fat pleated filter cartridges, such as 3M, Parker, Pall high flow filter cartridge.


Features:
Special for big diameter filter cartridges-fat pleated filter cartridges with high flow.
Special for high flow pleated filter cartridges similar with 3M, Parker, Pall high flow filter cartridge.

As one industrial filters machine manufacturer and supplier, Shanghai Indro Industry Co., Ltd is manufacturing and supplying micro porous folded filter welding machines- equipments, PP-PES-FIBERGLASS-NYLON-PTFE pleated filter cartridge production line, high flow pleated filter cartridges production line, we also supply plastic parts of pleated filter cartridges, including outer cage, inner core, cartridge caps and connecting ends parts.
Specification Data:
Max paper width: 1100mm or other as per your requirement.
Pleats Depth: 8-55mm adjustable
Max pleats speed: 120pleats/min
Max pleats length speed: 12m/min (different as per different pleats depth)
With PLC.
Power: standard 380/3 phase, other can be custom made as per requirement.
SIIC-M028-P1100-PLC: semi-automatic for common pleats.
SIIC-M028-P1100-PLC-A: total automatic, for both common pleats and "M" pleats
1. Liquid filtration high flow pleated filter cartridges making process:

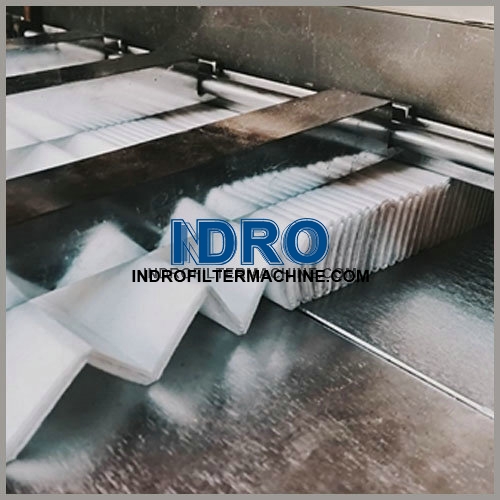

-Making cartridge pleats: Using high flow filter paper pleating machine to make filter cartridges pleats
-Welding middle seam: Using middle seam welder to do middle seam thermal welding of filter cartridges paper
-Length cutter/controller: Using high flow filter cartridge length cutter to cut/trim offer of pleated filter paper
-Cartridge shaping: Putting filter membrane with correct length into the outer cage (plastic shell) with inner core inside of the membrane to keep pleated filter cartridge have initial shape.
-End cap and connector ends welding: Using high flow filter cap welder to welding connector ends onto end of filter cartridges, for making 60inch, need to weld the cap on one of the ends of 20inch length or 40inch length piece. Do not need to weld cap for welding connector end.
-Length connector welding: for 20”/30”/40” long pleated filter cartridges, normally using high flow pleated filter cartridge length connecting welder to weld  2/3/4 pieces of 10” pieces together to complete 20”/30”/40”long pleated filter cartridges. For making 60inch length, after welding cap onto one of the ends of either 20inch or 40inch piece, then using length connector welder to make 60inch high flow filter.

2. To make one complete pieces of high flow pleated filter cartridge, you need to use following items of machines:
SIIC-M028-P1100: pleats maker, pleated cartridge filter paper pleating machine, special for folding /pleating filter paper of filter cartridge
SIIC-M028-ECW:pleated cartridge-ends cover welder, special for welding end cover of filter cartridge
SIIC-M028-LJW: high flow pleated cartridge length connecting welder, special for connecting cartridge together to become longer cartridge, such as 20", two parts, one joint, 30" three parts with 2 joints, 40" 4 parts with 3 joints, one 20 inch and one 40 inch to get 60 inch piece.
SIIC-M025-MSW: pleated cartridge-middle seam welder, special for welding middle seam of outer cover of pp pleated filter cartridge
SIIC-M028-LC: high flow pleated cartridge length cutter, special for cutting cartridge length-pleats width, do trimming of pleats edges.
