High flow pleated filter cartridge length connector welder-welding machine
High flow pleated filter cartridge length connector welder-welding machine High flow pleated filter cartridge length connector welder-welding machine High flow pleated filter cartridge length connector welder-welding machine

High flow pleated filter cartridge length connector welder-welding machine

Item No.: SIIC-M028-LJW

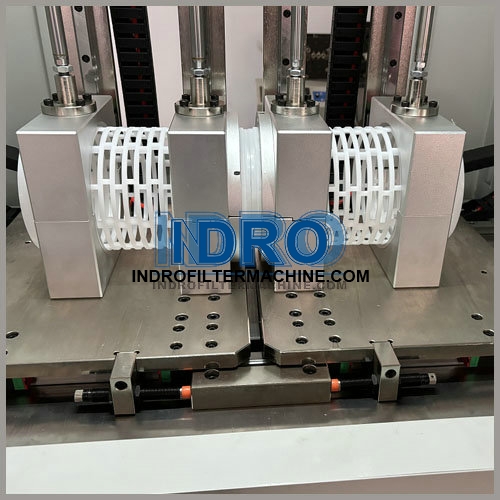

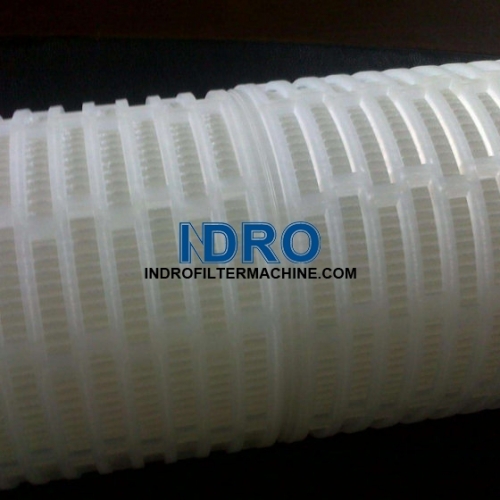

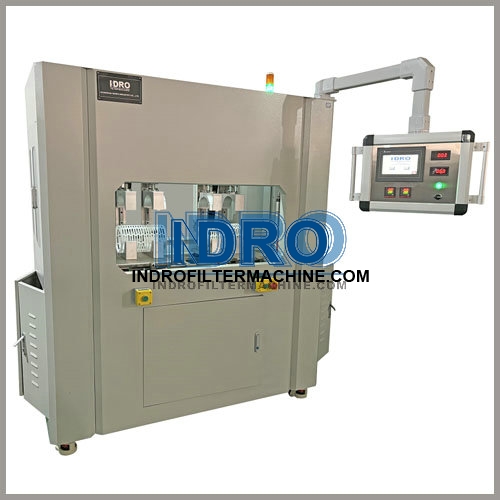

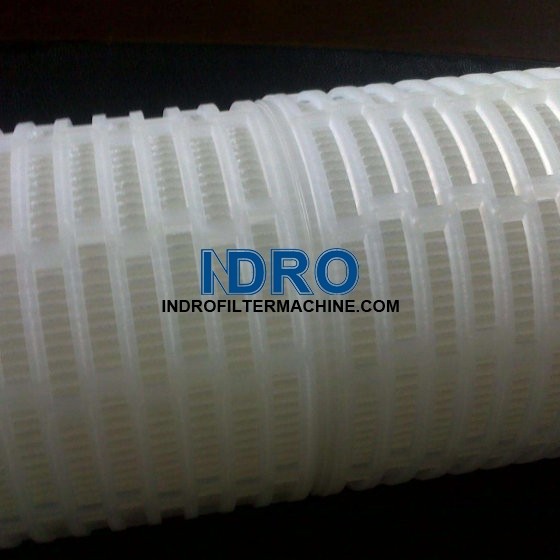

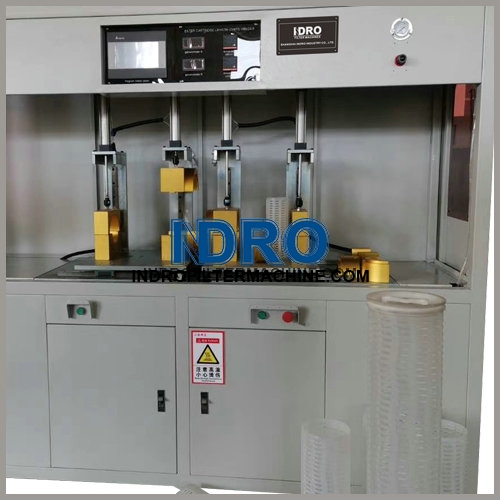

INDRO SIIC-M028-LJW high flow pleated filter cartridge connecting welder-welding machine is special used for connecting length of high flow pleated filters, big diameter-fat pleated filters, such as 3M, Parker, Pall high flow filters.
INQUIRY
Description Specification Filter Making Process Video
High flow pleated filter cartridge length connector welder-welding machine
Model No.: SIIC-M028-LJW/LJW-S

INDRO SIIC-M028-LJW high flow pleated filter cartridge connecting welder-welding machine is special used for connecting length of high flow pleated filter cartridges, big diameter-fat pleated filter cartridges, such as 3M, Parker, Pall high flow filter cartridge.

Applications:
Connect several cartridges together to get longer cartridge with welding, such as for 60", connecting 20" piece and 40" piece to get 60" piece. Special for high flow pleated filter cartridges, big diameter-fat pleated filter cartridges, such as 3M, Parker, Pall high flow filter cartridge.

Features:
Special for big diameter filter cartridges-fat pleated filter cartridges with high flow.
Special for high flow pleated filter cartridges similar with 3M, Parker, Pall high flow filter cartridge.
Available diameters: 82-152.4mm (3"-6"), other diameter can be custom made.

As one industrial filters machine manufacturer and supplier, Shanghai Indro Industry Co., Ltd is manufacturing and supplying micro porous folded filter welding machines- equipments, PP-PES-FIBERGLASS-NYLON-PTFE pleated filter cartridge production line, high flow pleated filter cartridges production line, we also supply plastic parts of pleated filter cartridges, including outer cage, inner core, cartridge caps and connecting ends parts.

Specification Data:
Frame: Folded plate welding and standard bolt connecting structure
Heating Mould: Brass H62, good thermal conductivity, temperature range: 0 ~ 399 degree C
Control Mode: PLC
Function: connect cartridge together to become longer cartridge, such as for 60", connecting 20" piece and 40" piece to get 60" piece.
Ensure that the filter cartridge is straight.Controlled automatically
Easy operation
Connecting length can be up to 60inch with standard models. Other length can be custom made.
Standard Model is with manual door, automatic door is optional as per customer's requirement.
Power: standard 380/3 phase, other can be custom made as per requirement.
SIIC-M028-LJW: hot plate welding system, heating mould (Brass H62), pneumatic drive, welding 1pc per time.
SIIC-M028-LJW-S: hot plate welding system, heating mould (Brass H62), servo drive, welding 1pc per time.

1. Liquid filtration high flow pleated filter cartridges making process:
-Making cartridge pleats: Using high flow filter paper pleating machine to make filter cartridges pleats
-Welding middle seam: Using middle seam welder to do middle seam thermal welding of filter cartridges paper
-Length cutter/controller: Using high flow filter cartridge length cutter to cut/trim offer of pleated filter paper
-Cartridge shaping: Putting filter membrane with correct length into the outer cage (plastic shell) with inner core inside of the membrane to keep pleated filter cartridge have initial shape.
-End cap and connector ends welding: Using high flow filter cap welder to welding connector ends onto end of filter cartridges, for making 60inch, need to weld the cap on one of the ends of 20inch length or 40inch length piece. Do not need to weld cap for welding connector end.
-Length connector welding: for 20”/30”/40” long pleated filter cartridges, normally using high flow pleated filter cartridge length connecting welder to weld  2/3/4 pieces of 10” pieces together to complete 20”/30”/40”long pleated filter cartridges. For making 60inch length, after welding cap onto one of the ends of either 20inch or 40inch piece, then using length connector welder to make 60inch high flow filter.

2. To make one complete pieces of high flow pleated filter cartridge, you need to use following items of machines:
SIIC-M028-P1100: pleats maker, pleated cartridge filter paper pleating machine, special for folding /pleating filter paper of filter cartridge
SIIC-M028-ECW:pleated cartridge-ends cover welder, special for welding end cover of filter cartridge
SIIC-M028-LJW: high flow pleated cartridge length connecting welder, special for connecting cartridge together to become longer cartridge, such as 20", two parts, one joint, 30" three parts with 2 joints, 40" 4 parts with 3 joints, one 20 inch and one 40 inch to get 60 inch piece.
SIIC-M025-MSW: pleated cartridge-middle seam welder, special for welding middle seam of outer cover of pp pleated filter cartridge
SIIC-M028-LC: high flow pleated cartridge length cutter, special for cutting cartridge length-pleats width, do trimming of pleats edges.
