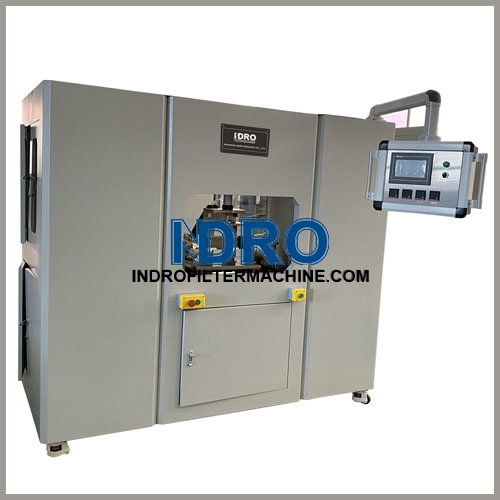

Pleated filter cartridge machines-production line

Item No.: SIIC-M025
SIIC-M025 pleated filter cartridge machines-production line is specially for making liquid filtration pleated filters, PP-PES-NYLON-FIBERGLASS-PTFE pleated filter cartridges with 10-20-30-40 inch length are available, special size can be custom made.
INQUIRY
Description Specification Filter Making Process Video
Liquid Filtration Pleated Filter Cartridge Machines/Production Line
Model No.: SIIC-M025
Pleated filter cartridge machine/production line is specially for making liquid filtration pleated filter cartridges. Small diameter PP-PES-NYLON-FIBERGLASS-PTFE pleated filter cartridges with standard 10-20-30-40 inch length are available, special length can be custom made.

1. Main Parts:
-Pleats Maker
-Pleats cartridge length cutter
-Pleated cartridge cap welder-welding machine
-Pleated cartridge length connector welder-welding machine
-Pleated cartridge connecting ends-fitting ends welder-welding machine
-Pleated cartridge filter media middle seam welder-welding machine

The Applicable Scope:
Pleated filter cartridge machine/production line is specially for making liquid filtration pleated filter cartridges. Small diameter PP-PES-NYLON-FIBERGLASS-PTFE pleated filter cartridges with standard 10-20-30-40 inch lengths are available, special length can be custom made.

As one industrial filters machine manufacturer and supplier, Shanghai Indro Industry Co., Ltd is manufacturing and supplying micro porous folded filter welding machines- equipments, PP-PES-FIBERGLASS-NYLON-PTFE pleated filter cartridge production line, high flow pleated filter cartridges production line, we also supply plastic parts of pleated filter cartridges, including outer cage, inner core, cartridge caps and connecting ends parts.


Related Items:


high flow pleated filter production line
2. Specification Data:

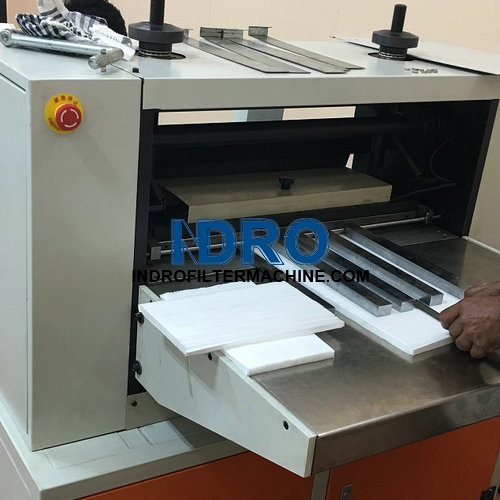

-Pleats maker (SIIC-M025-P600-PLC or SIIC-M025-P600)
Max paper width: 600mm or other as per your requirement.
Pleats Depth: 8-55mm adjustable
Max pleats speed: 120pleats/min
Max pleats length speed: 12m/min (different as per different pleats depth)
SIIC-M025-P600-PLC: automatic, with PLC.
SIIC-M025-P600: semi-automatic, without PLC.

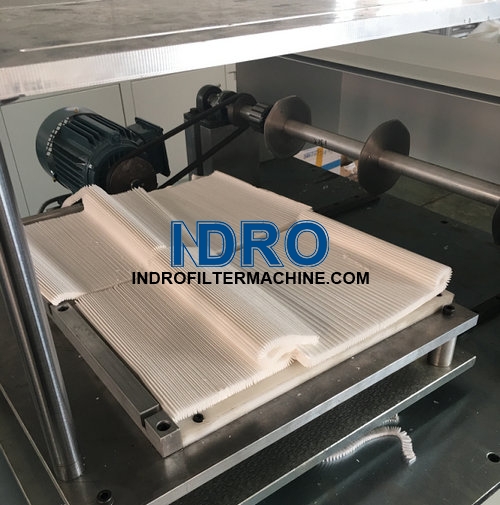

-Pleats cartridge length cutter (SIIC-M025-LC)
Do trimming off of pleated media to get exact length
Rotating cutting knife
Power: 380V 50Hz   other voltage can be custom made
Size/Weight: according to pleated cartridge length range
Cutting pleats width and do trimming off of filter cartridge pleats edges automatically.
Ensure that the cutting ends are flat and smooth.
Improve production capacity.
SIIC-M025-LC-A: 10" and 20" are available, other width are available.
Makes 2 pleats packs once. Do trimming off of pleated media to get exact length before putting into cage.
SIIC-M025-LC-B: 10" is available, cutting both ends once.
Do trimming off of pleated media to get exact length after putting pleated media into cage.

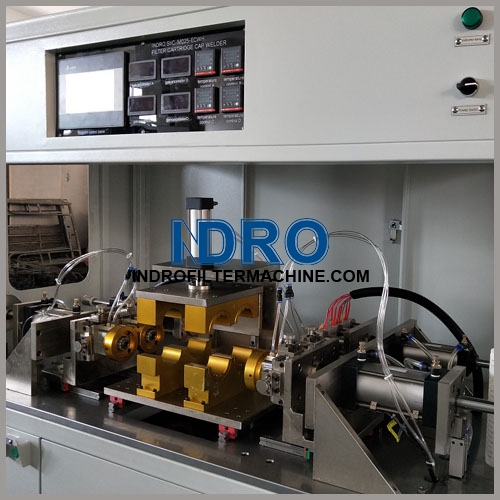

-Pleated cartridge cap welder (SIIC-M025-ECWH or SIIC-M025-ECW)
Frame: Folded plate welding and standard bolt connecting structure
Heating Mould: Brass H62, good thermal conductivity, temperature range: 0 ~ 399 degree C
Control Mode: PLC,Pneumatic way
Power: 80V 1.5 KW, other voltage can be custom made
Working air pressure: 0.6MPa
Weight: 550kg Size: L1350×W755mm×H1900mm
Welding temperature, welding time, welding depth is controlled automatically.
Special for welding covers/ends of pleated filter cartridges.
Good and stable sealing ability and fastness
Controlled automatically
Easy operation
SIIC-M025-ECWH: higher production capacity, 2pcs per time.
SIIC-M025-ECW: 1pc per time.

-Pleated cartridge length connector welder (SIIC-M025-LJWH or SIIC-M025-LJW)
Frame: Folded plate welding and standard bolt connecting structure
Heating Mould: Brass H62, good thermal conductivity, temperature range: 0 ~ 399 degree C
Control Mode: PLC,Pneumatic way
Power: 380V 1.5 KW, other voltage can be custom made
Working air pressure: 0.6MPa
Weight: 550kg Size: L1350×W755mm×H1900mm
Welding temperature, welding time, welding depth is controlled automatically.
Special for welding covers/ends of pleated filter cartridges.
Good and stable sealing ability and fastness
Controlled automatically
Easy operation
SIIC-M025-ECWH: higher production capacity, 2pcs per time.
SIIC-M025-ECW: 1pc per time.

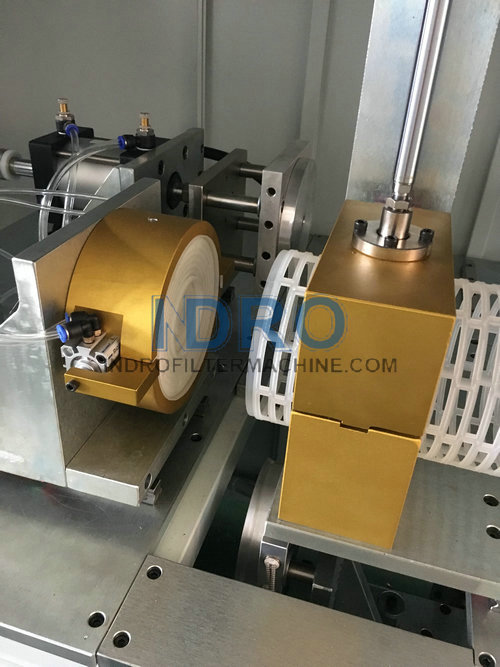

-Pleated cartridge connecting ends-fitting ends welder (SIIC-M025-EW):
Frame: Folded plate welding and standard bolt connecting structure
Heating Mould: Brass H62, good thermal conductivity, temperature range: 0 ~ 399 degree C
Control Mode: PLC,Pneumatic way
Power: 380V 1.5 KW, other voltage can be custom made
Working air pressure: 0.6MPa
Weight: 550kg Size: L1350×W755mm×H1900mm

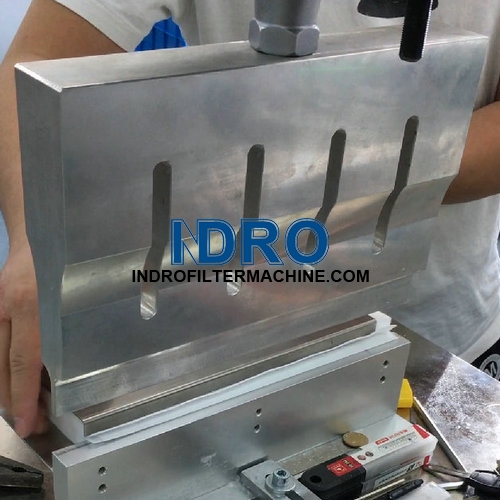

-Pleated cartridge filter media middle seam welder (SIIC-M025-MSW)
To weld the seam or joint in the middle of filter cartridge, high quality welding seam.
1. About liquid filtration pleated filter cartridges making process:
-Making cartridge pleats: Using filter paper pleating machine to make filter cartridges pleats
-Welding middle seam: Using middle seam welder to do middle seam thermal welding of filter cartridges paper
-Length cutter/controller: Using filter cartridge length cutter to cut/trim offer of pleated filter paper
-Cartridge shaping: Putting filter membrane with correct length into the outer cage (plastic shell) with inner core inside of the membrane to keep pleated filter cartridge have initial shape.
-End cap welding: Using cap welder to welding cap onto both ends of filter cartridges
-Length jointing/connecting: for 20”/30”/40” long pleated filter cartridges, normally using pleated filter cartridge length connecting welder to weld  2/3/4 pieces of 10” pieces together to complete 20”/30”/40”long pleated filter cartridges.
-Fitting end welding: using pleated filter cartridge fitting end welder to weld different types of fitting ends together with both ends of pleated cartridges and form one complete piece of pleated filter cartridges. The different ends types include: flat cover, fin, DOE215/220/222/226, M20/30 thread and other.

2. To make one complete pieces of pp/polypropylene pleated filter cartridge, you need to use following items of machines:
SIIC-M025-P: pleated cartridge filter paper pleating machine, special for folding /pleating filter paper of filter cartridge
SIIC-M025-EC:pleated cartridge-ends cover welder, special for welding end cover of filter cartridge
SIIC-M025-EW: PP/polypropylene pleated cartridge-ends welder, special for welding different types of ends of pp pleated filter cartridges.
SIIC-M025-LJ: PP/polypropylene pleated cartridge length joints welder, special for connecting cartridge together to become longer cartridge, such as 20", two parts, one joint, 30" three parts with 2 joints, 40" 4 parts with 3 joints.
SIIC-M025-MSW: pleated cartridge-middle seam welder, special for welding middle seam of outer cover of pp pleated filter cartridge
SIIC-M025-LC: PP/polypropylene pleated cartridge length cutter, special for cutting cartridge length.
