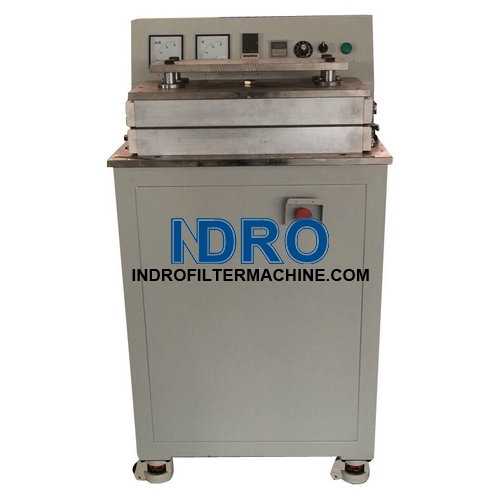

Pleated filter cartridge pleats middle seam welder

Item No.: SIIC-M025-MSW

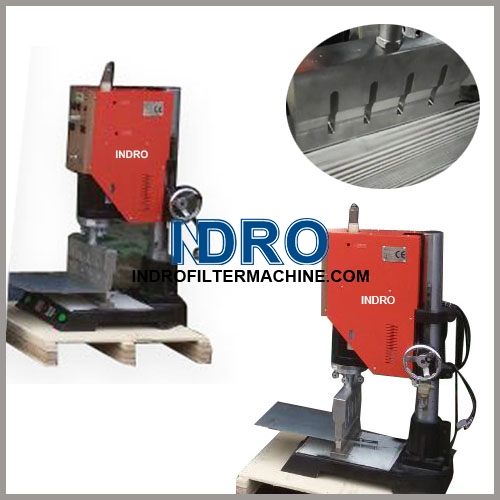

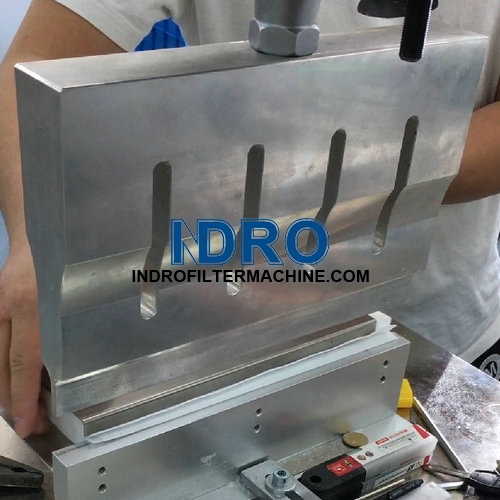

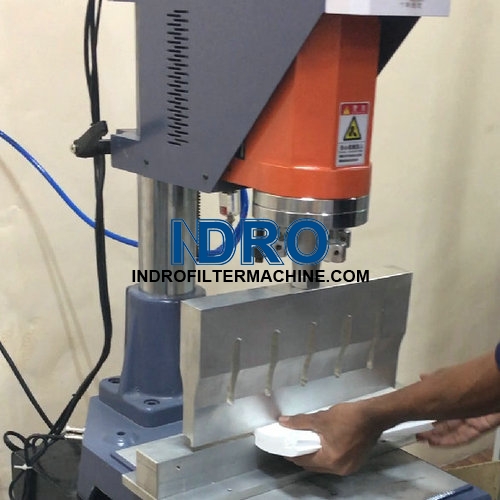

INDRO SIIC-M025-MSW pleated filter cartridge pleats middle seam welder is one ultrasonic welding machine and new welding machines used in welding middle seam of PP, PES, PTFE, Nylon, Fiberglass membrane liquid filtration pleated filter cartridges.
INQUIRY
Description Specification Filter Making Process Video
Pleated filter cartridge pleats middle seam welder
Model No.: SIIC-M025-MSW


INDRO SIIC-M025-MSW pleated filter cartridge pleats middle seam welder is one ultrasonic welding machine and new welding machines used in welding middle seam of PP, PES, PTFE, Nylon, Fiberglass membrane liquid filtration pleated filter cartridges.

Option A: for welding PP(polypropylene) membrane filter cartridge pleats middle seam
Option B: for welding PES-PTFE-Nylon-Fiberglass-PVDF membrane filter cartridge pleats middle seam


Applications: specially used in welding middle seam of liquid filtration pleated filter cartridges filter paper.

Principle:
The machine transforms electrical energy through an ultrasonic transducer to become an ultrasonic energy (the high frequency mechanical vibration energy that exceeds the hearing threshold of the human ear). The energy is carried to the plastic work piece through the welding head, and the joint surface of the plastic work piece is melted after intense friction with the ultrasonic frequency of tens of thousands of times per second and certain amplitude. After stopping the vibration, the transient pressure on the work piece is maintained to solidify the two weld pieces by molecular linking. The general welding time is less than 1 second, and the obtained welding strength is comparable with the body.

As one industrial filters machine manufacturer and supplier, Shanghai Indro Industry Co., Ltd is manufacturing and supplying micro porous folded filter welding machines- equipments, PP-PES-FIBERGLASS-NYLON-PTFE pleated filter cartridge production line, high flow pleated filter cartridges production line, we also supply plastic parts of pleated filter cartridges, including outer cage, inner core, cartridge caps and connecting ends parts.


Specs/Features:
-Size: 580*420*1200mm
-Working Air pressure: ≥0.6MPa
-Weight:67kg
-Drive: Pneumatic way
-Delay time, welding time and curing time can be adjusted and automatically controlled.
-Stable and perfect welding performance
-Easy operation
-Low consumption
-Professional manufacturer/supplier of filters making equipments

INDRO SIIC-M025-MSW pleated filter cartridge pleats middle seam welder is one ultrasonic welding machine and new welding machines used in welding middle seam of PP, PES, PTFE, Nylon, Fiberglass membrane liquid filtration pleated filter cartridges.
1. About liquid filtration pleated filter cartridges making process:
-Making cartridge pleats: Using filter paper pleating machine to make filter cartridges pleats
-Welding middle seam: Using middle seam welder to do middle seam thermal welding of filter cartridges paper
-Length cutter/controller: Using filter cartridge length cutter to cut/trim offer of pleated filter paper
-Cartridge shaping: Putting filter membrane with correct length into the outer cage (plastic shell) with inner core inside of the membrane to keep pleated filter cartridge have initial shape.
-End cap welding: Using cap welder to welding cap onto both ends of filter cartridges
-Length jointing/connecting: for 20”/30”/40” long pleated filter cartridges, normally using pleated filter cartridge length connecting welder to weld  2/3/4 pieces of 10” pieces together to complete 20”/30”/40”long pleated filter cartridges.
-Fitting end welding: using pleated filter cartridge fitting end welder to weld different types of fitting ends together with both ends of pleated cartridges and form one complete piece of pleated filter cartridges. The different ends types include: flat cover, fin, DOE215/220/222/226, M20/30 thread and other.

2. To make one complete pieces of small diameter liquid filtration pleated filter cartridge, you need to use following items of machines:
SIIC-M025-P: pleated cartridge filter paper pleating machine, special for folding /pleating filter paper of filter cartridge
SIIC-M025-EC: pleated cartridge-ends cover welder, special for welding end cover of filter cartridge
SIIC-M025-EW: PP/polypropylene pleated cartridge-ends welder, special for welding different types of ends of pp pleated filter cartridges.
SIIC-M025-LJ: PP/polypropylene pleated cartridge length joints welder, special for connecting cartridge together to become longer cartridge, such as 20", two parts, one joint, 30" three parts with 2 joints, 40" 4 parts with 3 joints.
SIIC-M025-MSW: pleated cartridge-middle seam welder, special for welding middle seam of outer cover of pp pleated filter cartridge
SIIC-M025-LC: PP/polypropylene pleated cartridge length cutter, special for cutting cartridge length.
Video of filter middle seam welder-option A: Model SIIC-M025-MSW-PP
for PP(polypropylene) membrane pleats



Video of filter middle seam welder-option B: Model SIIC-M025-MSW-H
for PES-PTFE-Nylon-Fiberglass-PVDF membrane pleats

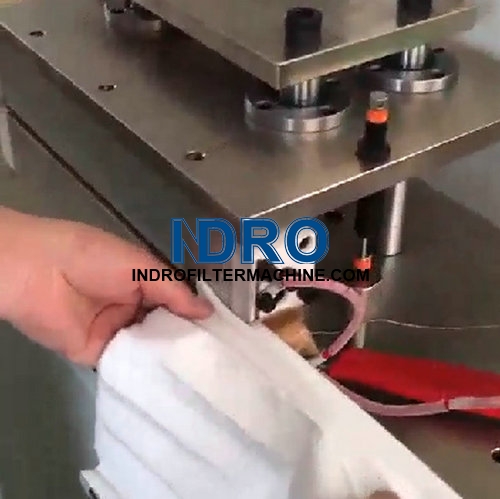

SIIC-M025-MSW-H filter pleats middle seam welder -Hydrophilic PTFE membrane filter media welding


SIIC-M025-MSW-H-filter pleats middle seam welder-Nylon membrane filter media welding


SIIC-M025-MSW-H-filter pleats middle seam welder-PES membrane filter media welding
