What is working space of the air filter pleating and gluing line？
Views : 4994
Author : indrofiltermachine.com
Update time : 2020-09-03 15:56:58
What is working space of the air filter pleating and gluing line？

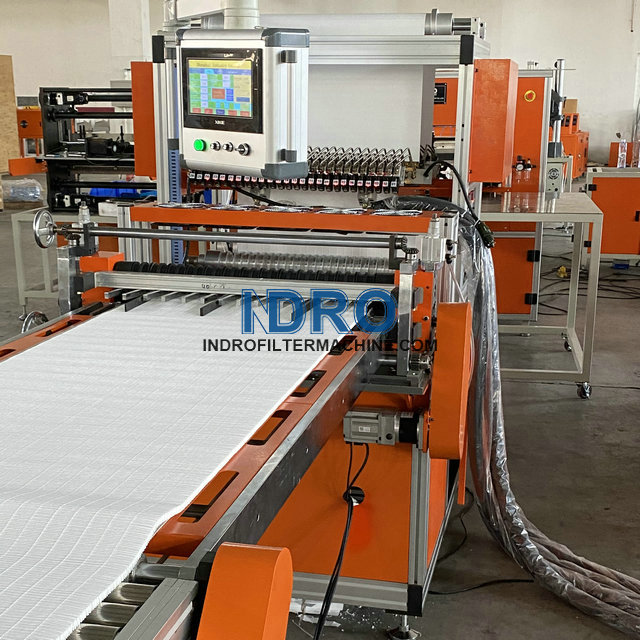

The whole air filter paper pleating and gluing production line includes feeding/ pre-cutting machine part, pleating machine part, gluing machine part, gluing holder/controller part, cross-cutting machine part, and cutter machine part with platform
If the filter roll width is 600mm or 700mm, the whole line size: 12m (length) *2.6m (width)
Machine max height：2m
The whole line installation size: min 15m(L)*4.6m(W) height：min 3 meters
Gluing holder/controller part is placed side of gluing machine, 500-1000mm away from the gluing machine part. If the side of the production line against the wall, the distance from the wall must be more than 1 meter. If the front or back side is against the wall, the distance between the machine and the wall must be more than 1.5 meters.
