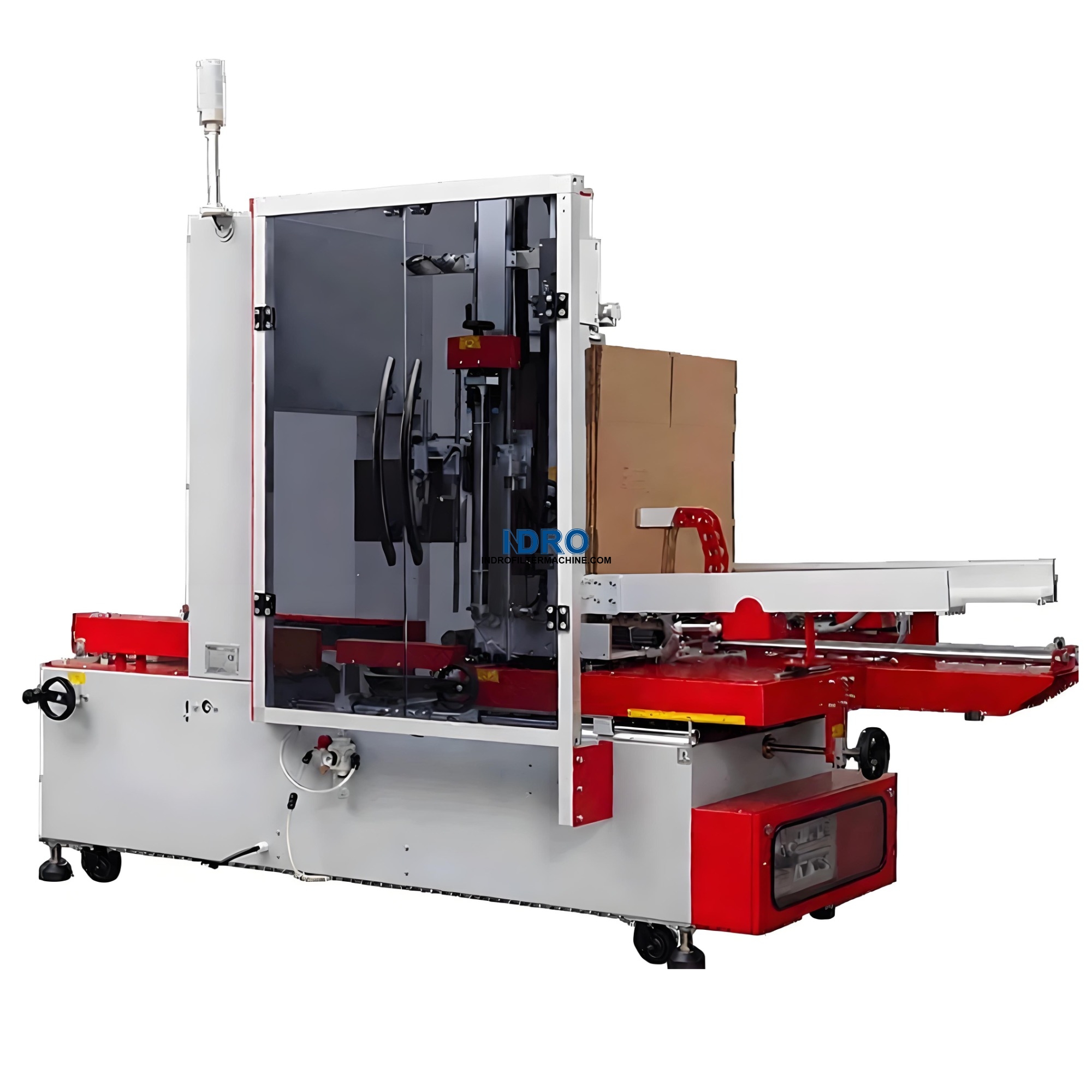

Automatic Pin‑insertion Case Erector
Model No.: SIIC-M040-PCE
Automatic pin‑insertion case erector delivers stable high‑speed carton erecting with full‑mechanical linkage for various carton materials and thicknesses.
Application Scope: Suitable for cartons of various materials and thicknesses.
Options:
• Full‑enclosure safety guard
• Stainless‑steel frame / Custom paint color
• Specified brands for electrical and pneumatic components
Parameters & Features:

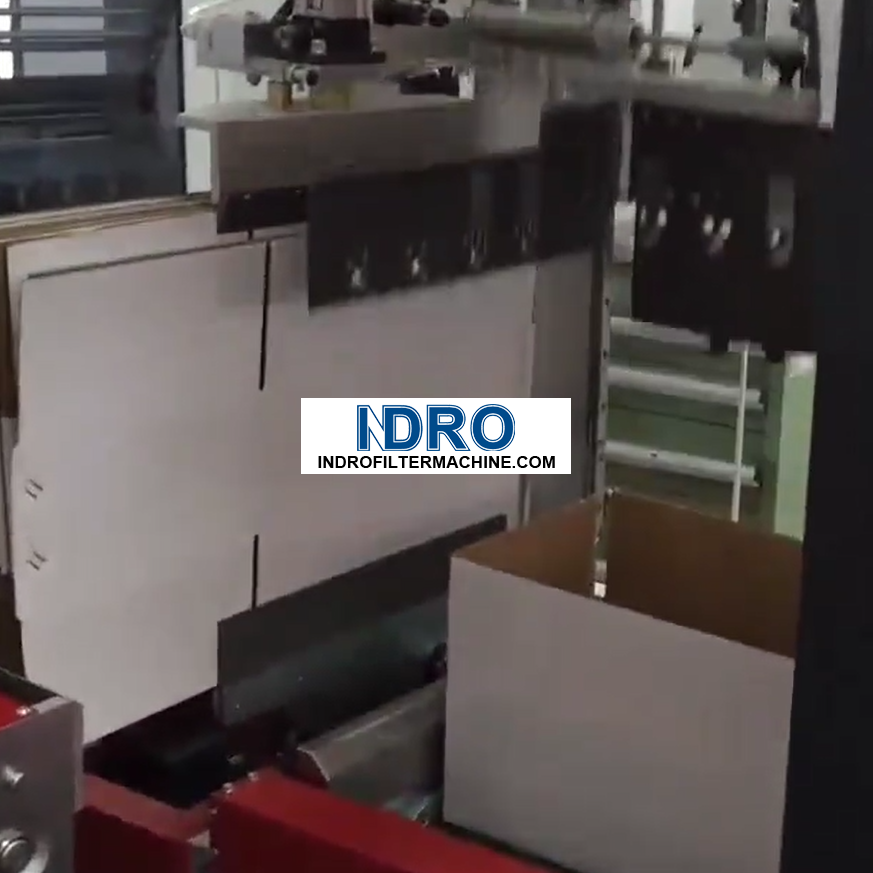

• Adopts pin‑insertion case opening design. All unpacking motions are mechanically linked, delivering fast speed, controllable cycle time and high operational stability.
• Equipped with touch screen and graphic user interface. Parameter settings can be saved for easy operation.
• Fitted with 1.5‑meter carton storage section to reduce material‑refilling frequency.
• Linear layout design minimizes floor space occupation.
• Machine Dimension-300*102*191cm (L*W*H)
• Applicable Carton Sizes-L250-550mm, W200-400mm, H120-350mm or other can be custom made.
• Applicable Tape: W,48-60-75mm, L 1000 Yards
• Case Erecting Speed: 8-15pcs per minute
• Working Table Height 670-720mm
• Power Supply 380, 50HZ, 3 Phase or other can be custom made
• Air Source 0.6-0.7Mpa
