High flow pleated filter cartridge radial pleats making machines line
Model NO.: SIIC-M028-RPM
High flow pleated filter cartridge radial pleats making machines line is special machines line used for making radial pleats of filter which are replacement of 3M high flow filter elements.
Main parts:

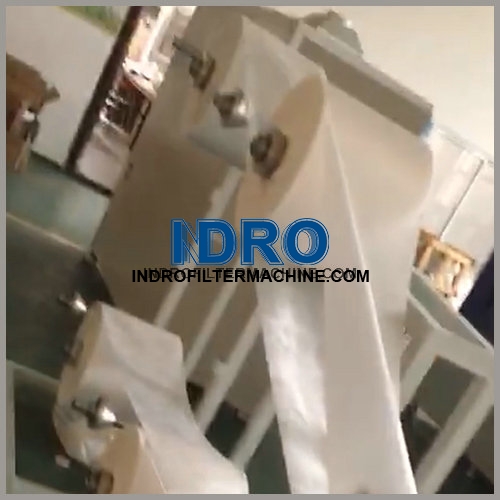

-filter medial roll feeding part

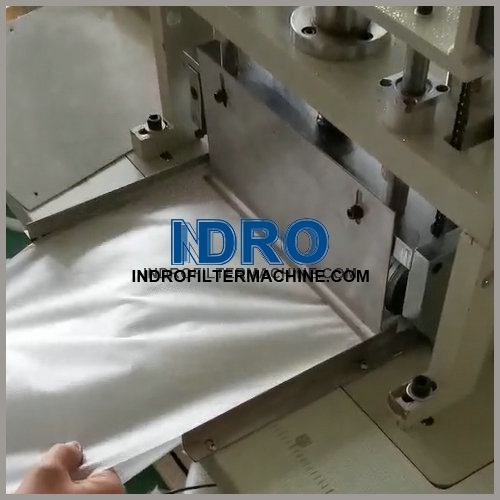

-filter media side seam welding part

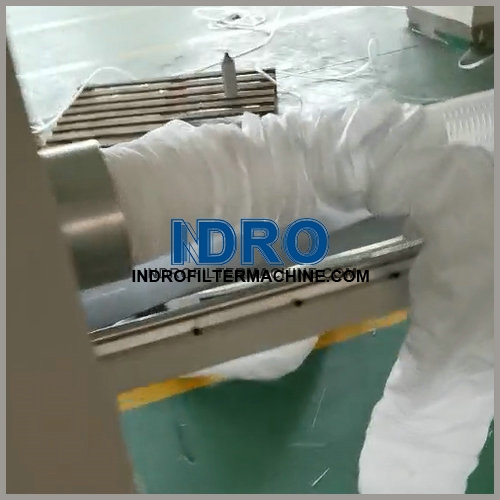

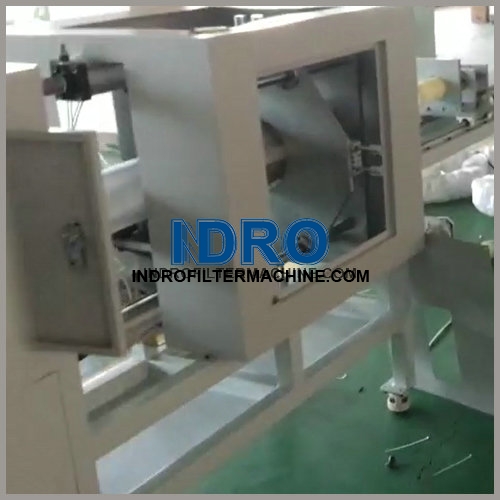

-radial pleats making part

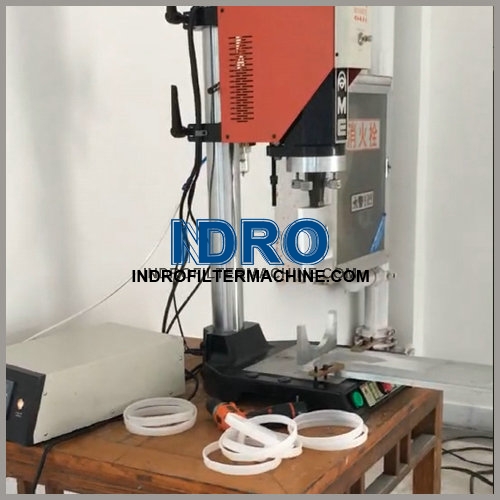

-filter pleat packs top welding part
About compound radial pleats:
A compound radial pleat design helps maximize the usable surface area per filter. Blown microfiber forms the basis of the filter media, which is made to tightly controlled fiber diameter specifications to produce a media with absolute rated particle retention characteristics. Our machines line embosses the media to produce a more uniform pleat pattern, which, in turn, allows greater utilisation of the media by evenly distributing the fluid throughout the entire filter structure. This results in consistent particle retention in a compact, space-saving design.
Process of making radial pleated high flow filter cartridges:
-Radial pleats making
-Install pleats into wrap net and core
-Pleats packs top welding
-High flow filter end cap welding
